5052 Alloy DC material Hot rolling Aluminum Coil for the Auto

Short Description:

5052 aluminum coil is a typical Al-Mg anti-rust alloy, which is famous for its extremely high fatigue strength, excellent formability and weldability, 5052 Aluminum coil is mainly used for body of car ,truck , such as truck air brake tanks / fuel tanks, large marine diesel tanks, gasoline or lubricating oil conduits, various liquid containers and parts for various Marine and land transportation equipment, as well as electrical shells, cold stamping parts, sheet metal products, etc.

Product Detail

Product Tags


As one of the main aluminum coil manufacturers in ChinaZhejiang New Aluminum is a famous and excellence brand in China and abroad.

Zhejiang New Aluminum Tech Co Ltd are following the development trend of global automobiles industry, explore and offer solutions for the energy-saving and weight-saving for aluminium automotive application and we are capable for producing high value-added auto-body sheets and is seeking to provide safely and cost-effectively auto-body sheet to lower the weight of vehicles in order to provide end-consumers with the fuel efficient vehicles.

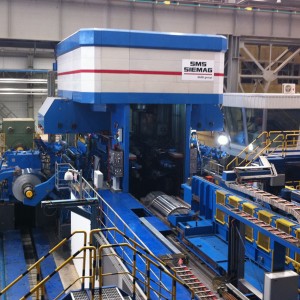

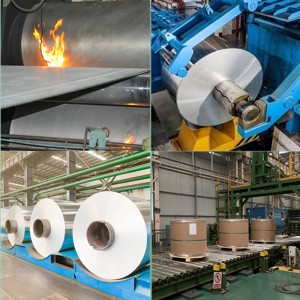

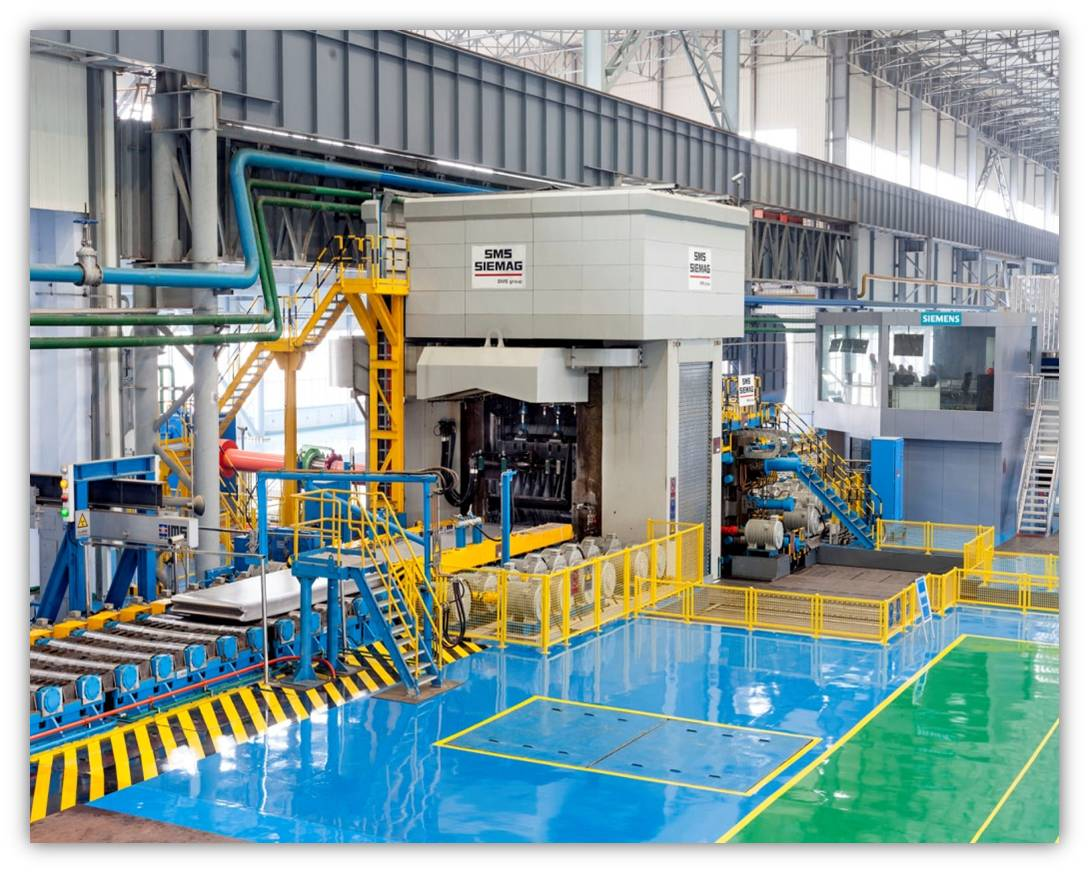

We have 6 hot rolling lines (DC) and 10 coil rolling lines (CC) ,The 5052 aluminum coil is hot rolling (DC ) material with smooth and fine surface, small thickness tolerance, good stamping and oxidation effect by SMS Rolling Mill. Through testing, all indexes are far beyond the standard indexes, and the products are guaranteed!

NameHigh quality Hot rolling 5052 Aluminum for the Auto
Alloy-temper5052  H14 H16 H18 H24 H26 H28 H32 O
Thickness0.25 mm to 8.0  mm
Width and tolerance100mm to 2000 mm (tolerance:± 1.0mm)
Weight2000 - 5000kg per roll coil (or customized)
Surface qualityMill finished ,Color coated ,Embossed, Stucco ,Mirror surface
Core material300/400/505 mm cardboard
PackagingEye to sky and Eye to wall
Tensile Strength(Mpa)>250 MPa (according to thickness)
Elongation %30%
Monthly Capacity5000 tons
Applicationbody of car ,truck , such as truck air brake tanks / fuel tanks, large marine diesel tanks, gasoline or lubricating oil conduits, various liquid containers and parts for various Marine and land transportation equipment
Deliver timewithin 20 days after getting the original LC or 30% deposit by TT
5052 Alloy DC material Hot rolling Aluminum Coil for the Auto

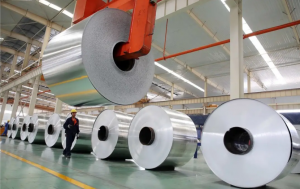

5052 Alloy

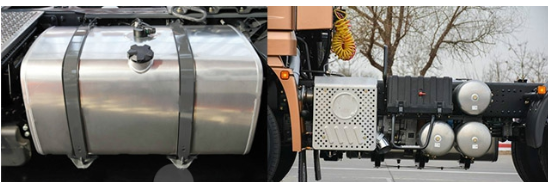

5052 Aluminum Coil for Truck Air Brake Tanks

Truck air brake tanks are often made of 5052 aluminum coil with a thickness of 1.5mm. They are used to store compressed air during truck driving to prepare other brake gas, such as truck brakes and sirens. Most notably, Mingtai 5052 aluminium alloy has obtained ISO/TS16949 from SGS Certification Agency, and DNV/ABS/BV/LR/CCS Classification Certificate, successfully used in truck air brake tanks/ fuel tanks/ gas tanks, marine diesel tanks and other ship containers and components manufacturing.

Other Usages

Besides the static load parts used in liquid or gas medium, 5052 aluminum coil can also be well applied in electrical enclosure, cold stamping parts, sheet metal products and other manufacture.

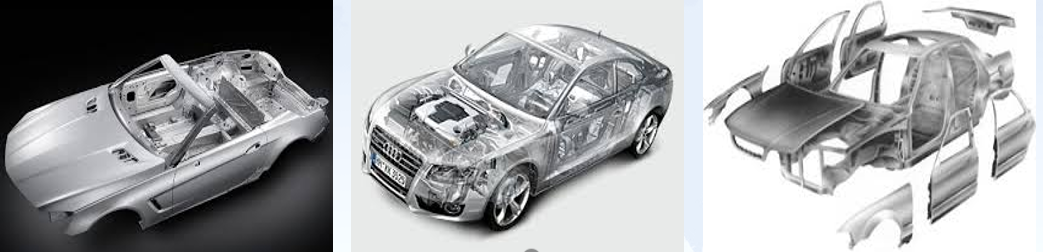

The Application of  5052  Aluminum Coil

The application of 5052 Aluminum Coil

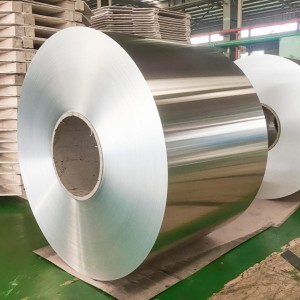

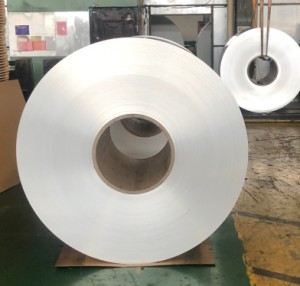

5052 Aluminum Coil

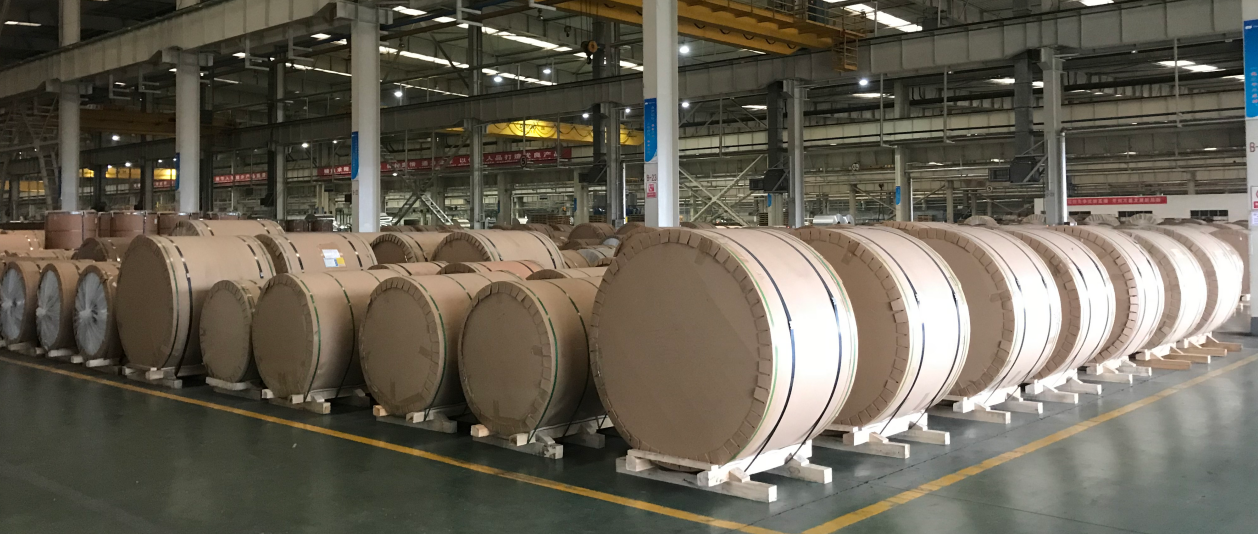

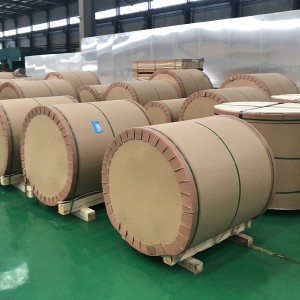

Packing and Stuffing


The Features of 5052 Aluminum Coil

1.Excellent Corrosion Resistance. Corrosion resistance is the typical property of 5052 aluminum coil. It is very effective to resist the corrosion of seawater, atmosphere, gasoline and other chemical.

2.Mechanical Properties. Take 5052-h32 aluminum coil as example, 5052-H32 tensile strength (Rm/Mpa) is 220-260, proof strength (Rp0.2/Mpa) is 130, percentage elongation after fracture is 5, and hardness is 61 HB.

3.Other Features. Marine grade aluminum 5052 for diesel tanks with high fatigue strength advantages is more suitable than 5083 marine aluminum. Besides, 5052 aluminum coil also has excellent formability, weldability, weather resistance and excellent polishing effect,etc.


Question : What is the difference of you and your competitor?

Answer : That is quite good question.

First of all ,We are definitely one of the best in the market ,I am not saying i am the best ,but one of the best.No one is perfect ,including us.we also make mistakes. How ever what really matters is how do you deal with your mistake and how can you improve next time and how can you satisfy your clients by compensation. So far our qualified products rate is nearly 99.85% ,thanks to our professional production team and technical team . We take every claim as an opportunity to review all the sections which may effect the quality .including production ,packing ,shipment and inspection. Therefore we are constantly improving this number and by the way ,we really compensate our clients in cash and so far our clients are fully satisfied with us

Quality Guarantee

We have strictly quality control system from aluminium ingot to finish aluminium roll products, and test all products before packing,just in order to make double sure that only qualified product will be delivery to clients  as we know even if little problem by us in our factory maybe lead to a  big trouble for clients when they get .If customer need ,we can apply the SGS and BV inspection when producing or loading.

If you are interest in our aluminum coil ,sheet ,circle and foil or any doubt ,please feel free to contact us any time

It would be our honour to become your partner then develop together .
