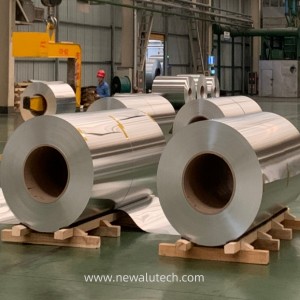

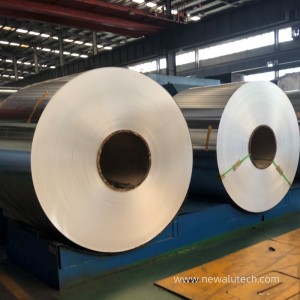

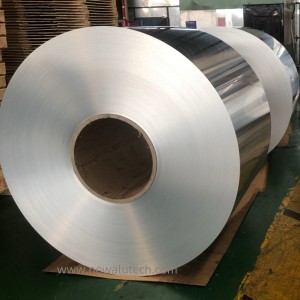

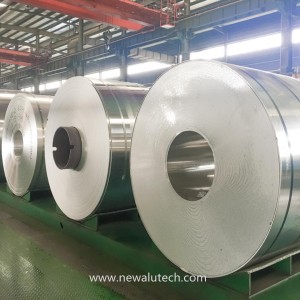

Alloy 1050 Aluminum Coil

Short Description:

1050 aluminum coil belongs to commercially pure wrought 1000 series alloy family with a purity of 99.5% Al. So, 1050 aluminum coil properties show excellent ductility, plasticity, corrosion resistance, and high electrical and thermal conductivity.

Previous: Alloy 1060 Aluminum Coil

Next:

CONTACT NOW

Product Detail

Product Tags

Details

Zhejiang New Aluminum Technology Co ltd produce the aluminum coil from the ingot, So we can control the quality from the source .

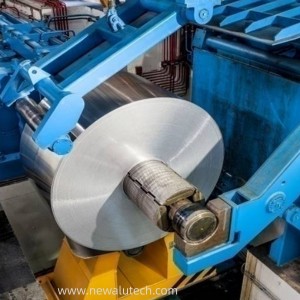

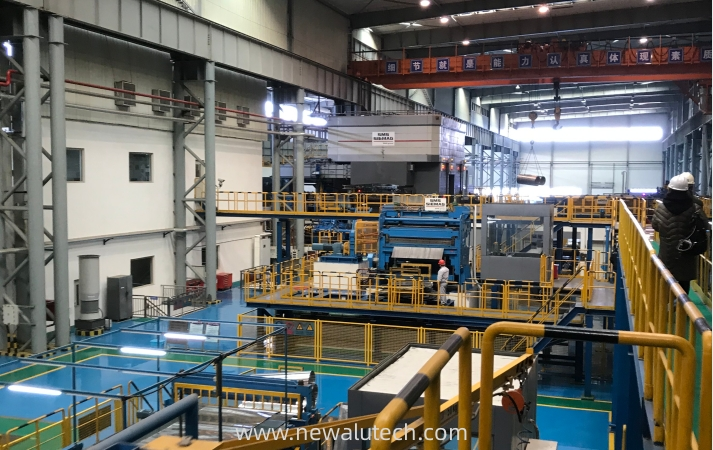

We have import two sets of 6-high CVC cold rolling mills from SMS Siemag ,Germany ,two sets of rolling grinding machines from HERCULES ,Germany ; three sets of 2150 foil rolling mill from ACHENBACH ,Germany; one set of 2050 mm 6-high coil rolling mill and two sets of tension leveling & cleaning lines from FATA HUNTER ,Itlay ; one set of edge trimming & slitting line from DANIELI ,Itlay ,and one set of AUTO Packing Line from POSCO ,South Korea .
We can produce themax width is 2500 mm and min thickness is 0.1 mm .With the help of high technology ,we can produce all kinds of aluminum coil with different standards as EN and control every step of production and retrospect all the raw material source .

We only produce high quality with competitive price as well as good service .For the deep drawing aluminum coil ,it used by DC material ,but now ,our CC material is also good for deep drawing and the price is cheaper

The capacity is 8000 tons per month for the aluminum coil ,there are more than 6000 tons are export to all over the world .

Parameter

Name	Alloy 1050 Aluminum Coil
Alloy-temper	1050 H12 H16 H14 H18 H26 H24 H26 HO
Thickness	0.1mm to20.0 mm
Width and tolerance	10- 2500 mm (tolerance:± 1.0mm)
Weight	100 - 5000kg per roll coil (or customized)
Surface	one side matte, one side bright or both side bright
Surface quality	Mill finished ,Color coated ,Embossed ,Anodized
Core material	300/400/ 505 mm cardboard

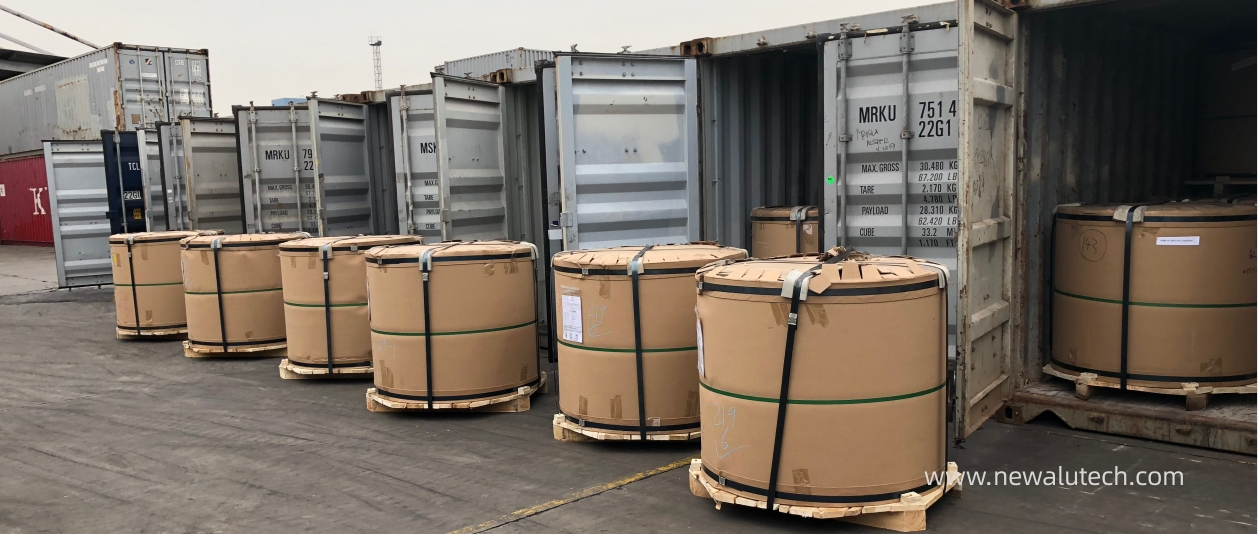

Packaging	Eye to sky and Eye to wall
Tensile Strength(Mpa)	90-130MPa (according to thickness)
Elongation %	≥22 %
Monthly Capacity	5000 tons
Application	lamp material, capacitor shell, road signs, heat exchanger, decorative aluminum,interior decoration, CTP version of the base, PS version of the base, aluminum plate, lamp materials, capacitor shell, lighting, etc.
Deliver time	within 20 days after getting the original LC or 30% deposit by TT

Features

1. Excellent Processability. 1050 aluminum coil with excellent processability can perform turning, milling, boring, planing and other mechanical processing at the maximum speed that machine tools can reach, and the forming effect is very good.

2. Extremely High Conductivity and Heat Transfer. The conductivity of 1050 aluminum coil was as high as 62%IACS (20℃). Furthermore, the thermal conductivity is 231W/(m·℃) at 20 ℃.

3.Other Features. The tensile strength of 1050 aluminum coil is 90 (N/mm2), but it has excellent anodic oxidation effect and high reflectivity.

Application

1050 aluminum alloy coil is also a non-heat treatment alloy with low strength, which cannot be strengthened by heat treatment and has weak machinability, but can accept contact welding and gas welding. Currently, since the production process of 1000 Series alloy coil such as 1050 aluminum coil is relatively simple and the technology is quite mature, the highly economical 1050 aluminum coil is very suitable for large-scale application in the field of industrial manufacturing.

Generally, 1050 aluminum coil is commonly used in some conditions requiring high corrosion resistance and formability, but low strength.

Among them, 1050 aluminum alloy for industrial aluminum, is typically used for the manufacture of containers for the chemical industry.

In addition, 1050 aluminum coil can also be used for lithium battery soft connection, pole lug material, explosion proof valve, PS plate base, CTP plate, sign, pallet, lamps, reflection plate, heat dissipation plate, insulation materials, etc.

Quality Guarantee

We have strictly quality control system from aluminium ingot to finish aluminium roll products, and test all products before packing,just in order to make double sure that only qualified product will be delivery to clients as we know even if little problem by us in our factory maybe lead to a big trouble for clients when they get .If customer need ,we can apply the SGS and BV inspection when producing or loading.
