5052 Aluminum coil for the high-end shutter and Venetian blind

Short Description:

5052 aluminum coil is a typical Al-Mg anti-rust alloy, which is famous for its extremely high fatigue strength, excellent formability and weldability . it is suitable to reduce the amount of material by thinning, drawing and lightening. ,it is very suit for the high-end shutter and Venetian blind




  • Previous:
  • Next:
  • Product Detail

    Product Tags

    Details

    Zhejiang New Aluminum Technology Co Ltd have more than 14 years experience for the aluminum Coil. Our main products include 1000 series, 3000 series, 5000 series and 8000 series and production more than 10000 tons per month .

    The 5 series aluminum coil is our leading products for the Lamp holder material shutter can material oxidation material color coated with aluminum base material Wine bottle cap, Beverage bottle cap, Cosmetic bottle cap, Cell phone battery shell material, Lighting and so on.

    For the shutter and window blind application ,The 5052 material is for the high-end shutter .we share 60% domestic market here . we can also split to 15/25/32mm and make all kinds of coils on the strip,just finished strip for the shutter

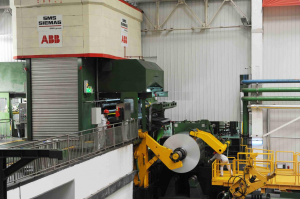

    We have 6 hot rolling lines (DC) and 10 coil rolling lines (CC) ,Our aluminum coil with smooth and fine surface, small thickness tolerance, good stamping and oxidation effect. Through testing, all indexes are far beyond the standard indexes, and the products are guaranteed!

    Name5052 Aluminum coil for the high-end shutter and Venetian blind
    Thickness0.1mm - 0.35 mm  (tolerance:±5%)
    Width and tolerance8 mm  - 1800  mm (tolerance:± 1.0mm)
    Weight100 -2000 kg per roll coil (or customized)
    SurfaceMill finished and color painted
    Surface qualityFree of black spot, line mark, creases, clean and smooth, no corrosion stains, wrinkles, and fish tails. Surface quality has to be
    uniform and no chatter marks.
    Core materialSteel / aluminum/ Plastic
    Core IDФ76mm, Ф150mm (±0.5mm)
    PackagingFumigation free wooden cases(keep us informed if any special requests)
    Deliver timewithin 20 days after getting the original LC or 30% deposit by TT
    5052 Aluminum coil for the high-end shutter and Venetian blind

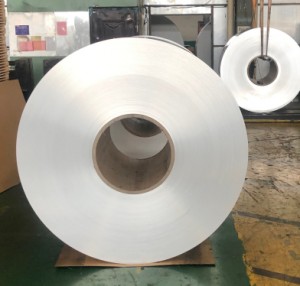

    5052 Aluminum coil

    The Features of 5052 Aluminum Coil

    1.Excellent Corrosion Resistance. Corrosion resistance is the typical property of 5052 aluminum coil. It is very effective to resist the corrosion of seawater, atmosphere, gasoline and other chemical.

    2.Mechanical Properties. Take 5052-h32 aluminum coil as example, 5052-H32 tensile strength (Rm/Mpa) is 220-260, proof strength (Rp0.2/Mpa) is 130, percentage elongation after fracture is 5, and hardness is 61 HB.

    3.Other Features. Marine grade aluminum 5052 for diesel tanks with high fatigue strength advantages is more suitable than 5083 marine aluminum. Besides, 5052 aluminum coil also has excellent formability, weldability, weather resistance and excellent polishing effect,etc.

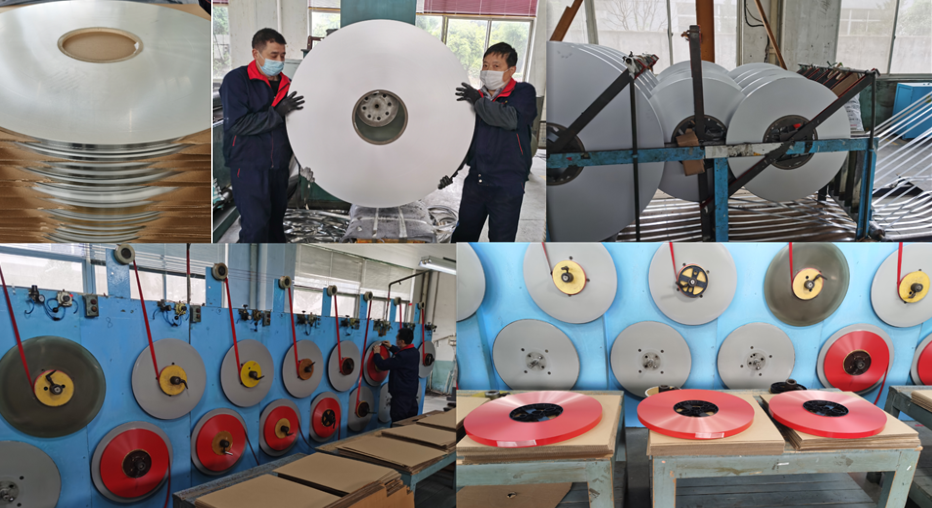

    high-end shutter and Venetian blind

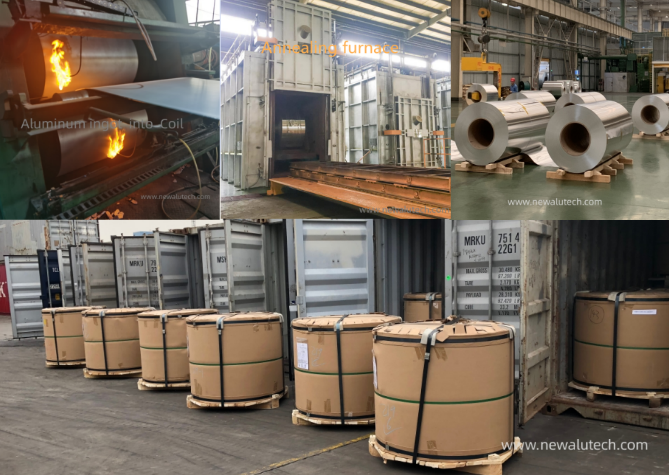

    Packing and Stuffing

    Packing and stuffing

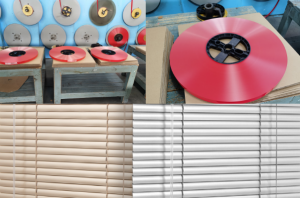

    The Application of  5052  Aluminum Coil

    Typical Usages of 5052  Aluminum Coil:  it is often used in Lamp holder material, shutter, can material, oxidation material ,color coated with aluminum base material ,Wine bottle cap, Beverage bottle cap, Cosmetic bottle cap, Cell phone battery shell material, Lighting and so on.

    The Application of5052Aluminum Coil

    Quality Guarantee

    We have strictly quality control system from aluminium ingot to finish aluminium roll products, and test all products before packing,just in order to make double sure that only qualified product will be delivery to clients  as we know even if little problem by us in our factory maybe lead to a  big trouble for clients when they get .If customer need ,we can apply the SGS and BV inspection when producing or loading.

    If you are interest in our aluminum coil ,sheet ,circle and foil or any doubt ,please feel free to contact us any time

    It would be our honour to become your partner then develop together .

    Mr Aloys

    The Export Manager

    Wechat:Newalutech

    Whatapp:0086 150 2440 2133

    Email:newalu01@hotmail.com

    Zhejiang New Aluminium Technology Co.,Ltd

    www.newalutech.com

    www.newaluchina.com

    Professional Make Perfect ,Let's Do More Together !
