ALUMINUM CIRCLE FOR LAMPS

Short Description:

Aluminum circle, also named as aluminium disc ,is punched from Aluminum Coil ,as the little density than stainless steel and good deep drawing and good reflectivity ,it is widely used in Lamp holder and light .

CONTACT NOW

Product Detail

Product Tags

Details

Zhejiang New Aluminum Technology Co Ltd have more than 12 years experience for the aluminum circle, As one of the main aluminum circle manufacturers in China market, Our main products include 1000 series, 3000 series, 5000 series and 8000 series and production more than 1000 tons per month

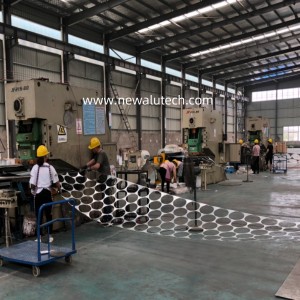

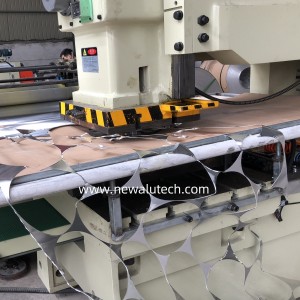

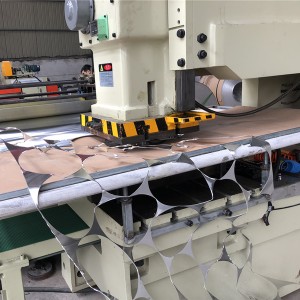

As one of the main aluminum circle manufacturers in China，Zhejiang New Aluminum Technology Co Ltd is a famous and excellence brand in China .We have eight punching machines and two CNC cutting machine ,also eight specially annealing furnaces to ensure the high quality of our circle .

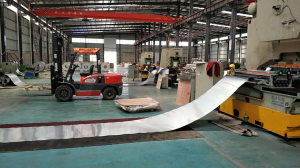

We produce the aluminum Coil from the ingot by the SMS Rolling Mill from Germany and Kampf Slitter. So we can control the quality from the source. We have our exclusive technology to ensure it will not break and very good for the deep drawing and spinning

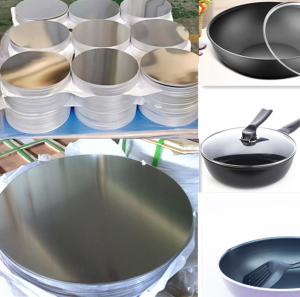

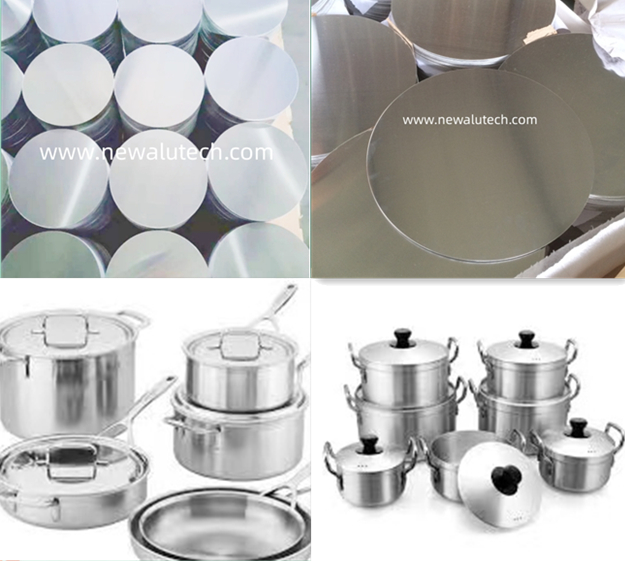

Our Aluminum circle is widely used in cookware with Deep-drawing and spinning .As the high heat conductivity and little density than stainless steel,it is more and more popular.

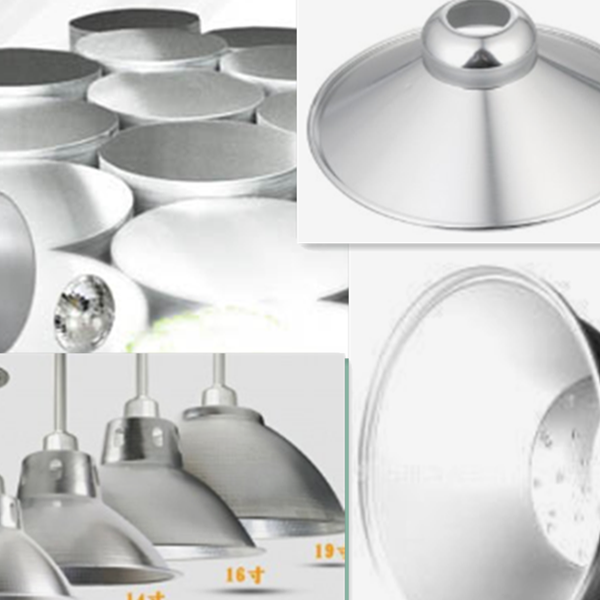

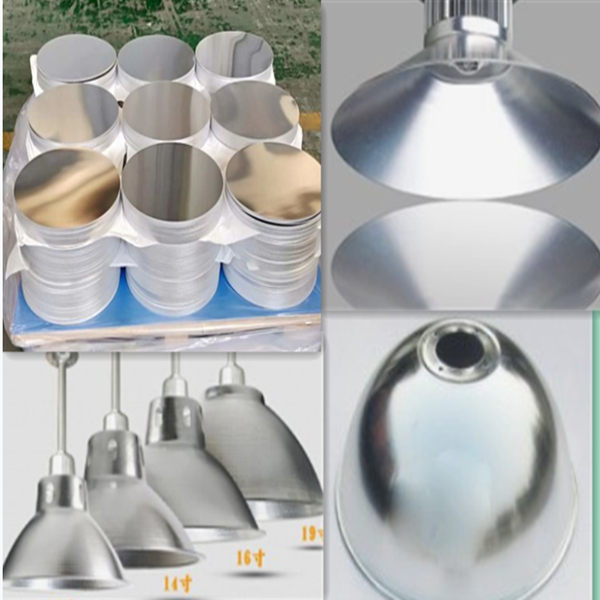

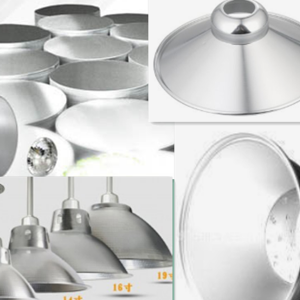

Aluminium circle /disc/disk for light /lamps
Aluminium Alloy	Thickness (mm)	Diameter (mm)	Temper
A1050,A1060,A1100	0.3-3.0	20-1250	HO,H12,H14,,H22,H24
Material process	CC AND DC (DC For cookware and CC for road sign)
	DC for cookware with good deep drawing and spinning
Customerize size	Size can be produced as per clients requirement
Surface	Mill finish

Quality Standard	ASTM B209,EN573-1
MOQ per size	500 kgs per size
Payment Terms	TT OR LC
Delivery time	Within 25 days after receipt the LC or deposit
Material Quality	Totally free from defects like roll makers ,edge damage ,oil stain ,white rust ,dents,scratches etc
Equipment	6 hot tandem rolling line ,5 cold mill production lines

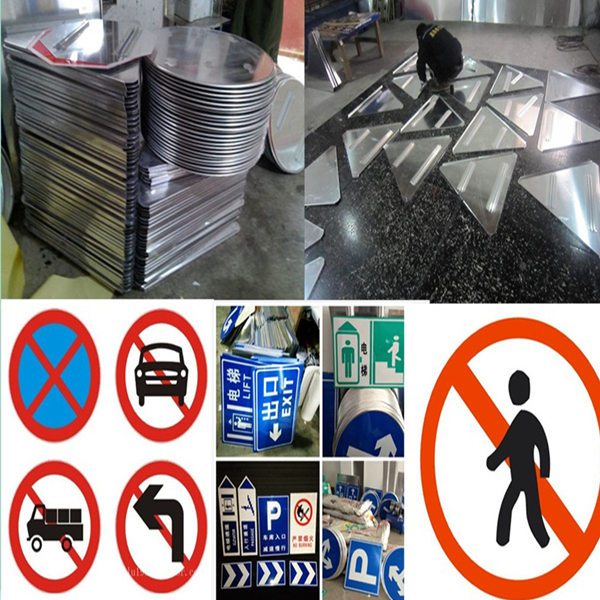

Application	Cookware, lamp cover and road traffic sign, Advertising board, Building decoration, Car body, Lamp holder, Fan leafs , Electrical part, Chemical instrument, Machined part, Deep-drawn or spinned part

Packing	Standard export worthy wooden pallets,and standard packing is about 1 tons/pallet
	Pallet weight also can be as per client's requirement,and one 20' can be loaded max 26 mts

1. Production Standard:as per international standard ASTM OR EN standard

2. All chemical composition ,mechanical property ,size tolerance ,flat tolerance etc Strictly as per ASTM OR EN standard .

Chemical Composition (WT. %)
ALLOY	Min. Al	Si	Fe	Cu	Mn	Mg	Zn	V	Ti	Other
1050	99.5	0.25	0.4	0.05	0.05	0.05	0.05	0.05	0.03	0.03
1060	99.6	0.25	0.35	0.05	0.03	0.03	0.05	0.05	0.03	0.03
1070	99.7	0.25	0.25	0.04	0.03	0.03	0.04	0.05	0.03	0.03
1100	99	0.95	0.95	0.05-0.2	0.05	/	0.1	/	/	0.05
3003	96.75	0.6	0.7	0.05-0.2	1.0-1.5	/	0.1	/	/	0.15
Mechanical Properties
TEMPER		THICKNESS(mm)		TENSILE STRENGTH		ELONGATION%		Standard
HO		0.36-10		60-100		≥ 20		GB/T91-2002
H12		0.5-10		70-120		≥ 4		GB/T91-2002
H14		0.5-10		85-120		≥ 2		GB/T91-2002

Our aluminum circle are made of high-quality aluminum materials, which are precisely cut and processed to ensure product quality and dimensional stability. At the same time, we also provide aluminum wafers of various specifications and thicknesses to meet the needs of different applications. In addition, our aluminum wafer products also have excellent weldability, formability and surface smoothness, providing customers with more application options and process solutions. Our aluminum wafer products have passed the ISO9001 quality system certification, and have been widely recognized and praised by users. We are committed to providing customers with high-quality aluminum products and high-quality after-sales service.

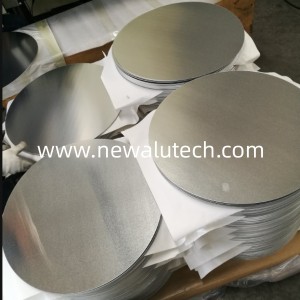

Packing and Stuffing

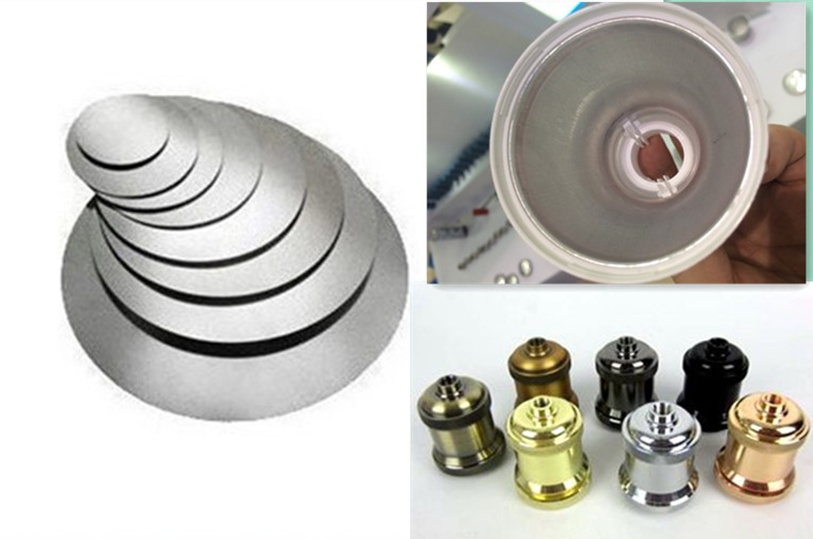

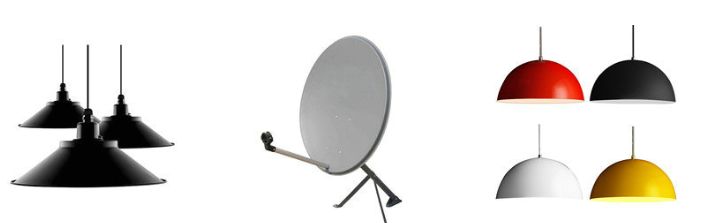

Application

Question : What is the difference of you and your competitor?

Answer : That is quite good question.

First of all ,We are definitely one of the best in the market ,I am not saying i am the best ,but one of the best.No one is perfect ,including us.we also make mistakes. How ever what really matters is how do you deal with your mistake and how can you improve next time and how can you satisfy your clients by compensation. So far our qualified products rate is nearly 99.85% ,thanks to our professional production team and technical team . We take every claim as an opportunity to review all the sections which may effect the quality .including production ,packing ,shipment and inspection. Therefore we are constantly improving this number and by the way ,we really compensate our clients in cash and so far our clients are fully satisfied with us .

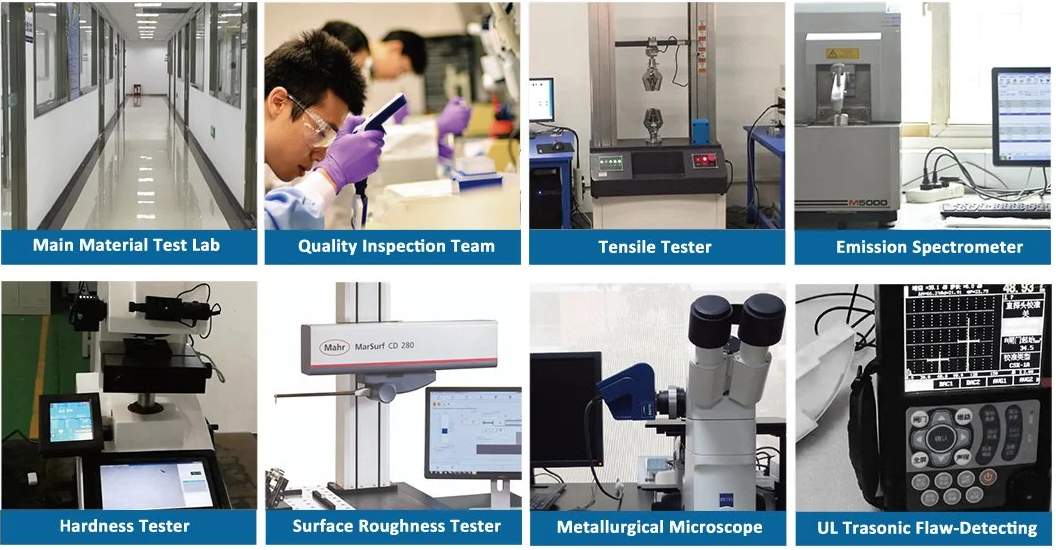

Quality Guarantee

We have strictly quality control system from aluminium ingot to finish aluminium roll products, and test all products before packing,just in order to make double sure that only qualified product will be delivery to clients as we know even if little problem by us in our factory maybe lead to a big trouble for clients when they get .If customer need ,we can apply the SGS and BV inspection when producing or loading.

If you are interest in our aluminum coil ,sheet ,circle and foil or any doubt ,please feel free to contact us any time

It would be our honour to become your partner then develop together .
