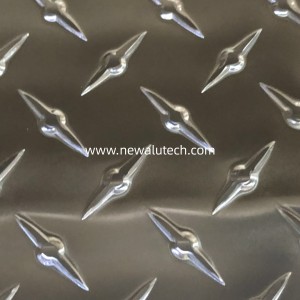

Diamond Aluminum Sheet

Short Description:

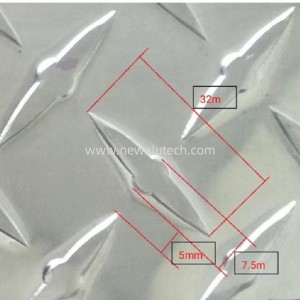

The diamond aluminum tread plate  is a piece of material that is mostly used for safety reasons. The tread diamond pattern, means that small metallic parts pop out a few mm over the main surface, thus creating a firmer grip between your shoe and the plate. This is basically what accounts for the plate’s nonskid properties, and why they are so widely used in industrial sites.

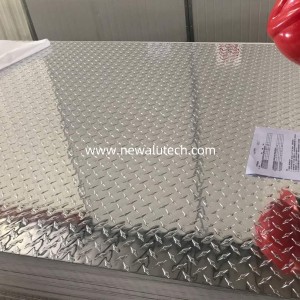

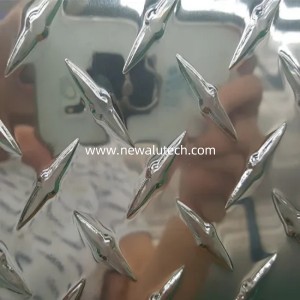

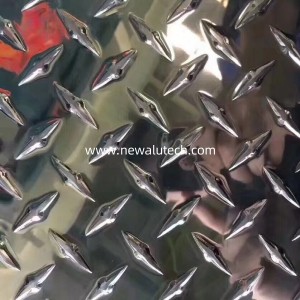

We can produce the mirror surface for the diamond Aluminum Sheet



Product Detail

Product Tags

Details

The Diamond Aluminum Sheet is is one of leading products of New Aluminum Tech Co Ltd ,it is widely used for the flooring and Steps of all kinds of  building or Vehicles,as the weight is more less than steel ,so it is becoming more and  more popular

10

The diamond patterned aluminum plate is not simply for decorative purposes, but to increase its friction. Like the pedals in the car, the speed bumps on the road, etc., the pattern aluminum plate is used. In fact, the most common place to use patterned aluminum panels is on ships. The hardness and anti-corrosion function of the patterned aluminum plate can meet the requirements for the production of the ship floor, and thus it has been promoted. For flooring of common cold storage rooms, 1060 aluminum checker plate is usually adopted; For van tank flooring, 3003 chequer plate is a better choice, but for application conditions requiring stronger hardness and corrosion resistance, 5000 series like 5052 and 5083 is a better choice.

20
21

Parameter

Product:Diamond Aluminum Checkered  Sheet /Plate
Material1050, 1060, 1100, 3003, 3004, 3005, 3104, 3105, 5005, 5052, 5754, 6061
TemperH12,H22,H14,H16,H18, H24,H26,etc
PackingStandard exporting wooded Pallet about 2MT.  1X20GP can load about 22 MT
Quality of materialstotally free from defects like white rust, oil patches, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set
PatternTread / diamond, Stucco embossed, Tread five bar,Tread three bars
MOQ5 tons
Delivery time15 days after 30% T/T payment or receiving L/C copy

Our aluminium checker plate flooring products meet national standards for aluminum and aluminum alloy tread plates (GB/T 3618-2006), applicable to the uniform standard of aluminum and aluminum alloy tread plates.

18
22

Packing and Loading

12

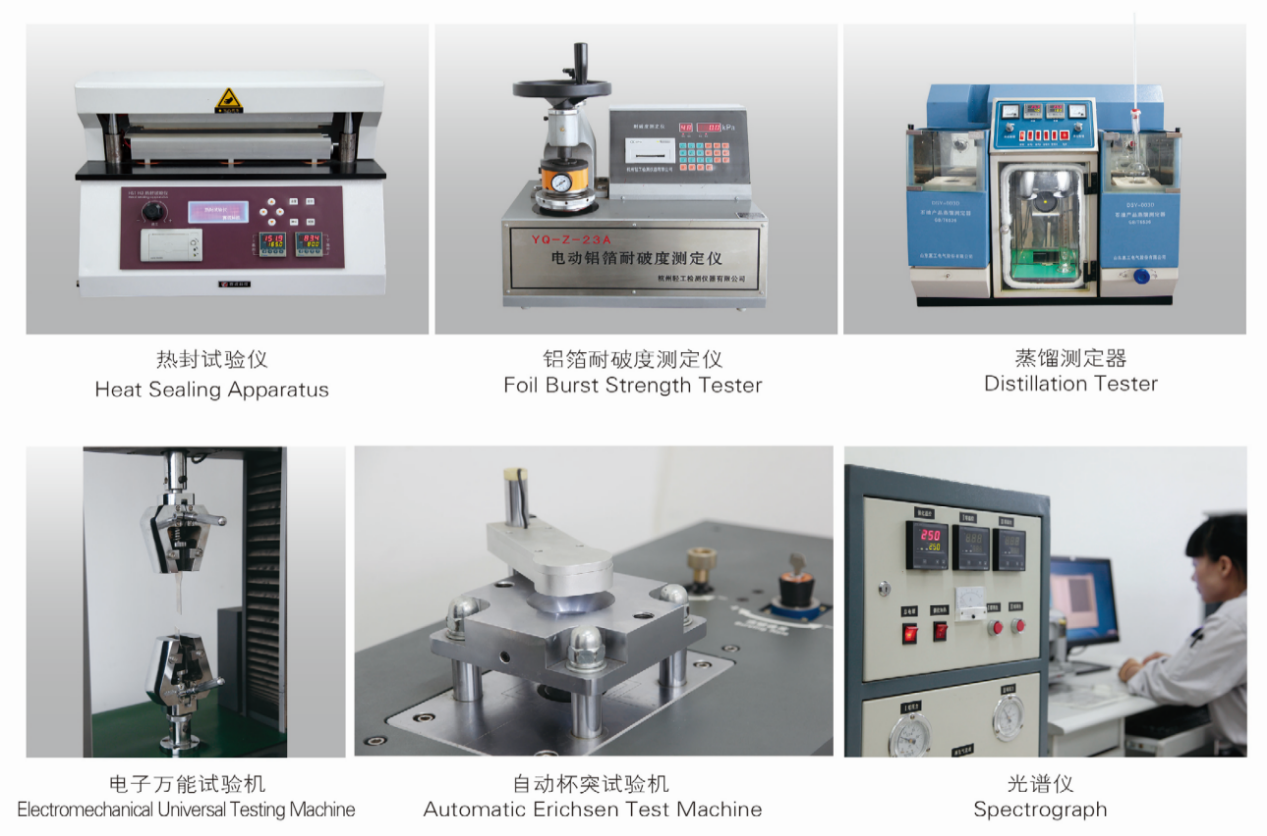

Quality Guarantee

We have strictly quality control system from aluminium ingot to finish aluminium roll products, and test all products before packing,just in order to make double sure that only qualified product will be delivery to clients  as we know even if little problem by us in our factory maybe lead to a  big trouble for clients when they get .If customer need ,we can apply the SGS and BV inspection when producing or loading.

14

Question : What is the difference of you and your competitor?

Answer : That is quite good question.

First of all ,We are definitely one of the best in the market ,I am not saying i am the best ,but one of the best.No one is perfect ,including us.we also make mistakes. How ever what really matters is how do you deal with your mistake and how can you improve next time and how can you satisfy your clients by compensation. So far our qualified products rate is nearly 99.85% ,thanks to our professional production team and technical team . We take every claim as an opportunity to review all the sections which may effect the quality .including production ,packing ,shipment and inspection. Therefore we are constantly improving this number and by the way ,we really compensate our clients in cash and so far our clients are fully satisfied with us

Welcome to visit us .

Whatsapp:0086 150 2440 2133

Email: newalu01@hotmail.com

Zhejiang New Aluminium Technology Co.,Ltd

www.newalutech.com

www.newaluchina.com

Professional Make Perfect ,Let's Do More Together !
