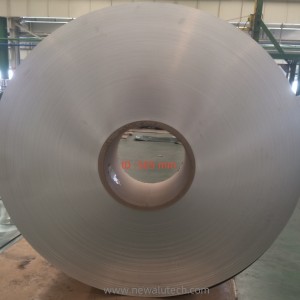

Alloy 1100 Aluminum Coil

Short Description:

Alloy 1100 aluminum coil, containing at least 99% Al, is the most heavily alloyed of the 1000 series, so becomes the mechanically strongest alloy in this series. which is also called pure aluminum .So it is widely used in many application as the excellent electrical conductivity, thermal conductivity, plasticity.

Previous: 1100 1050 1060 Aluminum Alloy Coil for Building

Next: Alloy 1060 Aluminum Coil

CONTACT NOW

Product Detail

Product Tags

Details

Zhejiang New Aluminum Technology Co ltd produce the aluminum coil from the ingot, So we can control the quality from the source .

We have import two sets of 6-high CVC cold rolling mills from SMS Siemag ,Germany ,two sets of rolling grinding machines from HERCULES ,Germany ; three sets of 2150 foil rolling mill from ACHENBACH ,Germany; one set of 2050 mm 6-high coil rolling mill and two sets of tension leveling & cleaning lines from FATA HUNTER ,Itlay ; one set of edge trimming & slitting line from DANIELI ,Itlay ,and one set of AUTO Packing Line from POSCO ,South Korea .
We can produce themax width is 2500 mm and min thickness is 0.1 mm .With the help of high technology ,we can produce all kinds of aluminum coil with different standards as EN and control every step of production and retrospect all the raw material source .

We only produce high quality with competitive price as well as good service .For the deep drawing aluminum coil ,it used by DC material ,but now ,our CC material is also good for deep drawing and the price is cheaper

The capacity is 8000 tons per month for the aluminum coil ,there are more than 6000 tons are export to all over the world .

Parameter

Name	Alloy 1100 Aluminum Coil
Alloy-temper	1100 H12 H16 H14 H18 H26 H24 H26 HO
Thickness	0.1mm to 4.0 mm
Width and tolerance	10- 2500 mm (tolerance:± 1.0mm)
Weight	100 - 5000kg per roll coil (or customized)
Surface	one side matte, one side bright or both side bright
Surface quality	Mill finished ,Color coated ,Embossed ,Anodized
Core material	300/400/ 505 mm cardboard
Packaging	Eye to sky and Eye to wall
Tensile Strength(Mpa)	90-130MPa (according to thickness)
Elongation %	≥22 %
Monthly Capacity	5000 tons
Application	lamp material, capacitor shell, road signs, heat exchanger, decorative aluminum,interior decoration, CTP version of the base, PS version of the base, aluminum plate, lamp materials, capacitor shell, lighting, etc.
Deliver time	within 20 days after getting the original LC or 30% deposit by TT

Features

1. Strong Corrosion Resistance. 1100 aluminum coil is highly resistant to corrosion by water and atmosphere. Besides, under 0℃, its strength will increase, and low temperature brittleness won’t occur.
2.Excellent Weldability. It is worth mentioning that 1100 aluminium alloy coil can be welded by any method.
3.Mechanical Properties. 1100-h14 aluminum coil tensile strength σb (MPa) is 125, yield strengthσ0.2 (MPa) is 115, elongationδ16 (%) is 10, and HB is 32. Here, the thickness tolerance ofNew Alu 1100 aluminum coil can be (-0,02/+0mm).

Application

Due to the excellent ductility,processability, corrosion resistance, weldability, surface handling, conductivity and heat transfer. New Alu Technology’s 1100 aluminum coil can be well adapted to applications that are difficult to form. Therefore, 1100 aluminium alloy coil is often used as large refrigerator aluminum liners, HVAC, aluminum composite panels, building decoration, deep stamping parts, sheet metal processing work piece, nameplate, etc.

1100 H16 Aluminium Coils for Aluminum Composite Panels
Aluminum composite panel, also known as aluminous model board, is composed of multi-layer materials, the upper and lower layers are high purity aluminum alloy panels, while the middle is compound composite materials, such as PE as the core board. Aluminum composite panels perfectly combine the advantages of alloy Al and nonmetal. Our Regular customers from Mid East purchased 250-300 tons of mill finish 1100 aluminum coil for ACP from us per month! The thickness of the procurement requirements of 0.12 mm, 0.15 mm, 0.18 mm, 0.24 mm, the thickness tolerance in (-0,02/+0mm), etc.
Other Usages
Besides, 0.35mm 1100-H16 aluminum coil for large refrigerator aluminum liners also has very high practicality. In practice, 1100 aluminum coil also has been widely applied in HVAC,condenser, radiator, evaporator, deep stamping parts, sheet metal processing work piece, nameplate, fan blades, spinning, chemical instruments, transportation equipment components, etc.

Quality Guarantee

We have strictly quality control system from aluminium ingot to finish aluminium roll products, and test all products before packing,just in order to make double sure that only qualified product will be delivery to clients as we know even if little problem by us in our factory maybe lead to a big trouble for clients when they get .If customer need ,we can apply the SGS and BV inspection when producing or loading.
