Zhejiang New Aluminum Tech Co Ltd is one of the leader for the battery aluminum foil in China .
We have cooperate several new energy automobile factories here and the demand of that is sharply risen in the past 3 years.
The characteristics for the Battery aluminum foil :
· Excels in foil flexibility
Due to its flexibility, this foil is resistant to the expansion and contraction of battery at the time of charge/discharge.
· Good in smoothness on either side
The active material to provide the functionality of battery can be applied uniformly.
· Small in foil thickness variation
Due to its small thickness variation, the coating thickness variation of active material can be suppressed.
To raise the output power, the HEV battery has a thinner active material layer than the commercial batteries.
The smaller the foil thickness variation, the smaller can be made the thickness variation of the active material.
This advantageous property of our product has been highly appreciated by every automotive battery manufacturers, and is often a decisive factor in accepting orders.
Name | High Precision Battery Aluminum Foil for Lithium Ion Battery |
Alloy-temper | 1060 1070 1235 O /H18 |
Thickness | 0.01- 0.03mm (tolerance:±5%) |
Width and tolerance | 300- 1200 mm (tolerance:± 1.0mm) |
Weight | 200 - 500kg per roll coil (or customized) |
Surface quality | Free of black spot, line mark, creases, clean and smooth, no corrosion stains, wrinkles, and fish tails. Surface quality has to be uniform and no chatter marks. |
Core material | Steel / aluminum |
Core ID | Ф76mm, Ф150mm (±0.5mm) |
Packaging | Fumigation free wooden cases(keep us informed if any special requests) |
Tensile Strength(Mpa) | 》190 MPa (according to thickness) |
Elongation % | ≥2% |
Wettability | A grade |
Surface wetting tension | ≥32 dyne |
Application | for battery case of new energy, mobile phone and digital products |
Deliver time | within 20 days after getting the original LC or 30% deposit by TT |
Product specifications and parameters(thickness:0.010-0.030mm)
Item | Standard 1 | Standard 2 |
hardness | H18 | H18 |
width | Standard width ±1mm | Standard width ±1mm |
Thickness | 0.016±0.002 mm | 0.012±0.002mm |
areal density | 42~46g/ m2 | 30~34g/m2 |
With transverse surface density uniformity | ≤0.003 g/ 40×40 mm | ≤0.003 g/ 40×40 mm |
The same volume of vertical surface density uniformity | ≤0.03 g/ 400×40 mm | ≤0.03 g/ 400×40 mm |
High temperature oxidation resistance (200°C*30min) | No oxidation | No oxidation |
Connect no | <2 | <2 |
Chemistry content(Al) | >99.45% | >99.45% |
extensibility | <0.5% | <0.5% |
Normal temperature Tensile strength kgf/mm2 | >180 | >140 |
After 1200C baking 1h, Tensile strength kgf/mm2 | >160 | >120 |
Coating performance | Aluminum foil with uniform tension on both sides, slurry coating uniformity |
Quality Guarantee
We have strictly quality control system from aluminium ingot to finish aluminium roll products, and test all products before packing,just in order to make double sure that only qualified product will be delivery to clients as we know even if little problem by us in our factory maybe lead to a big trouble for clients when they get .If customer need ,we can apply the SGS and BV inspection when producing or loading.

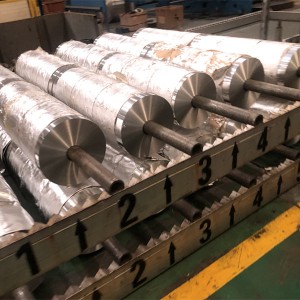

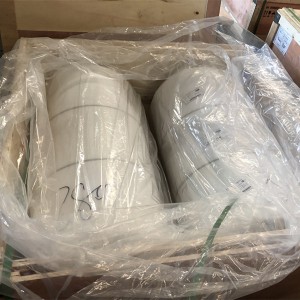

Packing and Stuffing:
