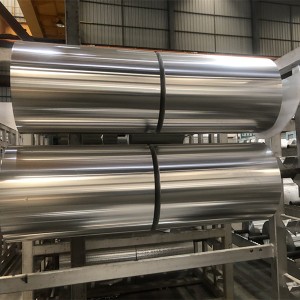

0.012 to 0.03 mm Aluminum Foil for Lithium Battery

Short Description:

The battery Aluminum foil is become more and more popular in the new energy in the past 8 years all over the world ,especially in China and Europe. Battery aluminum foil is used for the positive electrode in lithium-ion rechargeable battery.It asks for very high requirements for the surface .the usual alloy is 1060 ,1070 and 1235 .

CONTACT NOW

Product Detail

Product Tags

Details

Zhejiang New Aluminum Tech Co Ltd is one of the leader for the battery aluminum foil in China .

We have cooperate several new energy automobile factories here and the demand of that is sharply risen in the past 3 years.

The characteristics for the Battery aluminum foil :

·    Excels in foil flexibility
Due to its flexibility, this foil is resistant to the expansion and contraction of battery at the time of charge/discharge.
·    Good in smoothness on either side
The active material to provide the functionality of battery can be applied uniformly.
·    Small in foil thickness variation
Due to its small thickness variation, the coating thickness variation of active material can be suppressed.
To raise the output power, the HEV battery has a thinner active material layer than the commercial batteries.
The smaller the foil thickness variation, the smaller can be made the thickness variation of the active material.
This advantageous property of our product has been highly appreciated by every automotive battery manufacturers, and is often a decisive factor in accepting orders.

Name	1050 1235 1060 Aluminum Foil for New Energy Battery
Alloy-temper	1060 1070 1235 O /H18
Thickness	0.01- 0.03mm (tolerance:±5%)
Width and tolerance	300- 1200 mm (tolerance:± 1.0mm)
Weight	200 - 500kg per roll coil (or customized)
Surface quality	Free of black spot, line mark, creases, clean and smooth, no corrosion stains, wrinkles, and fish tails. Surface quality has to be uniform and no chatter marks.
Core material	Steel / aluminum
Core ID	Ф76mm, Ф150mm (±0.5mm)
Packaging	Fumigation free wooden cases(keep us informed if any special requests)
Tensile Strength(Mpa)	》190 MPa (according to thickness)
Elongation %	≥2%
Wettability	A grade
Surface wetting tension	≥32 dyne

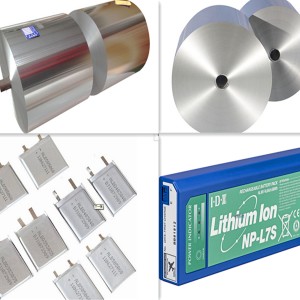

Application	for battery case of new energy, mobile phone and digital products
Deliver time	within 20 days after getting the original LC or 30% deposit by TT

Product specifications and parameters(thickness:0.010-0.030mm)

Item	Standard 1	Standard 2
hardness	H18	H18
width	Standard width ±1mm	Standard width ±1mm
Thickness	0.016±0.002 mm	0.012±0.002mm
areal density	42~46g/ m2	30~34g/m2
With transverse surface density uniformity	≤0.003 g/ 40×40 mm	≤0.003 g/ 40×40 mm
The same volume of vertical surface density uniformity	≤0.03 g/ 400×40 mm	≤0.03 g/ 400×40 mm
High temperature oxidation resistance (200°C*30min)	No oxidation	No oxidation
Connect no	<2	<2
Chemistry content(Al)	>99.45%	>99.45%
extensibility	<0.5%	<0.5%
Normal temperature Tensile strength kgf/mm2	>180	>140
After 1200C baking 1h, Tensile strength kgf/mm2	>160	>120
Coating performance	Aluminum foil with uniform tension on both sides, slurry coating uniformity

Quality Guarantee

We have strictly quality control system from aluminium ingot to finish aluminium roll products, and test all products before packing,just in order to make double sure that only qualified product will be delivery to clients as we know even if little problem by us in our factory maybe lead to a big trouble for clients when they get .If customer need ,we can apply the SGS and BV inspection when producing or loading.

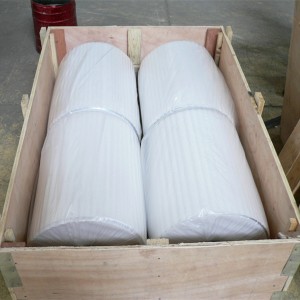

Packing and Stuffing:
